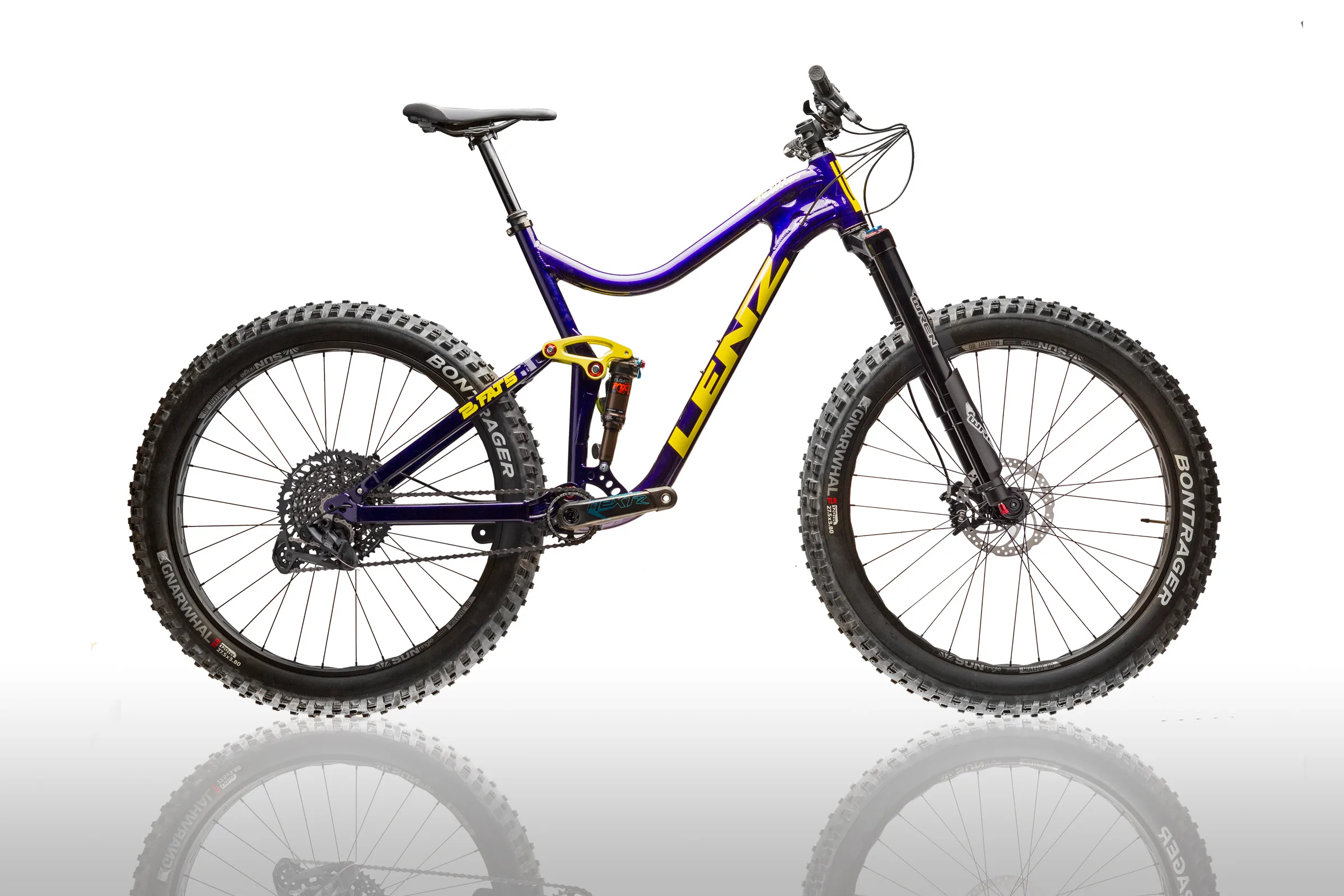

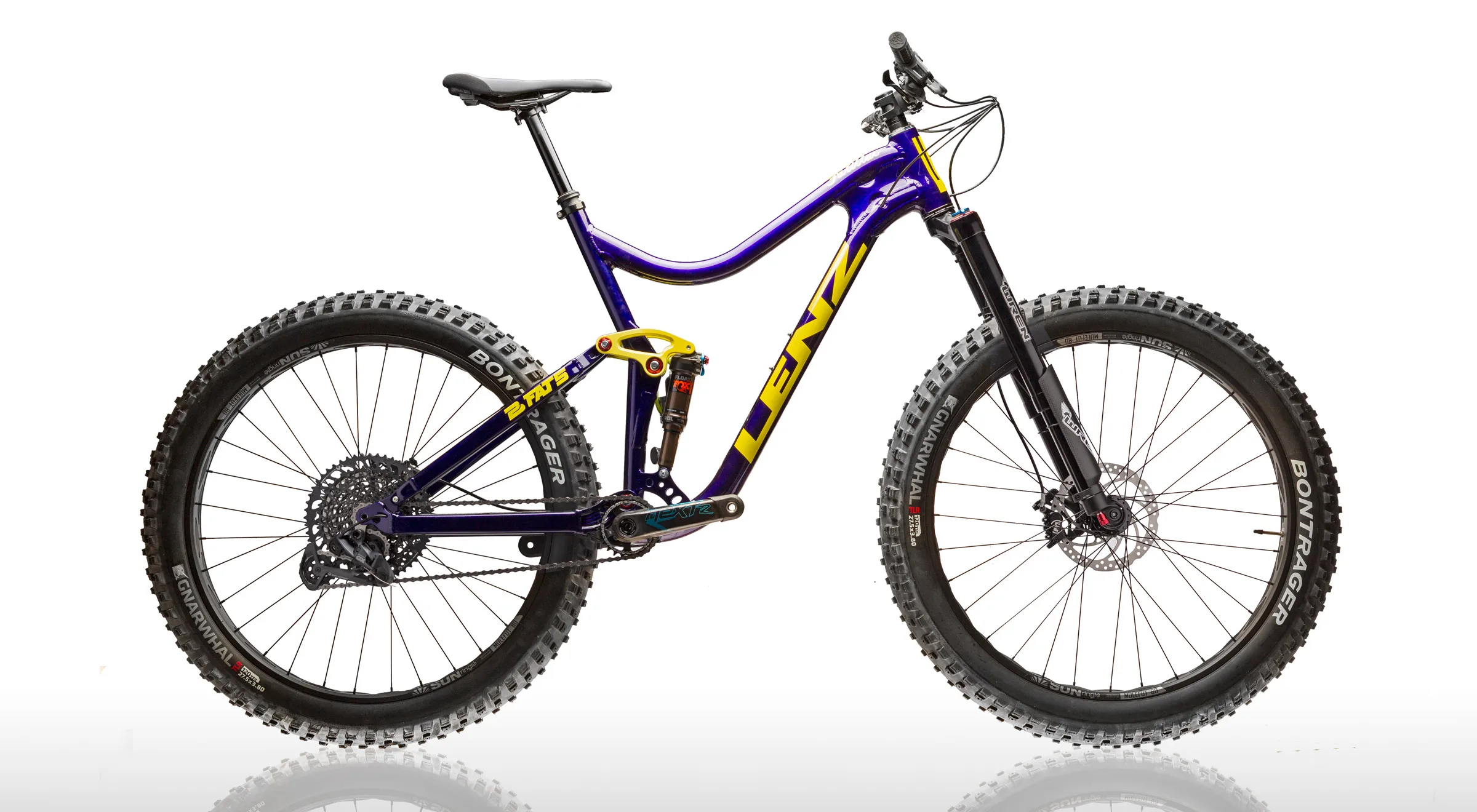

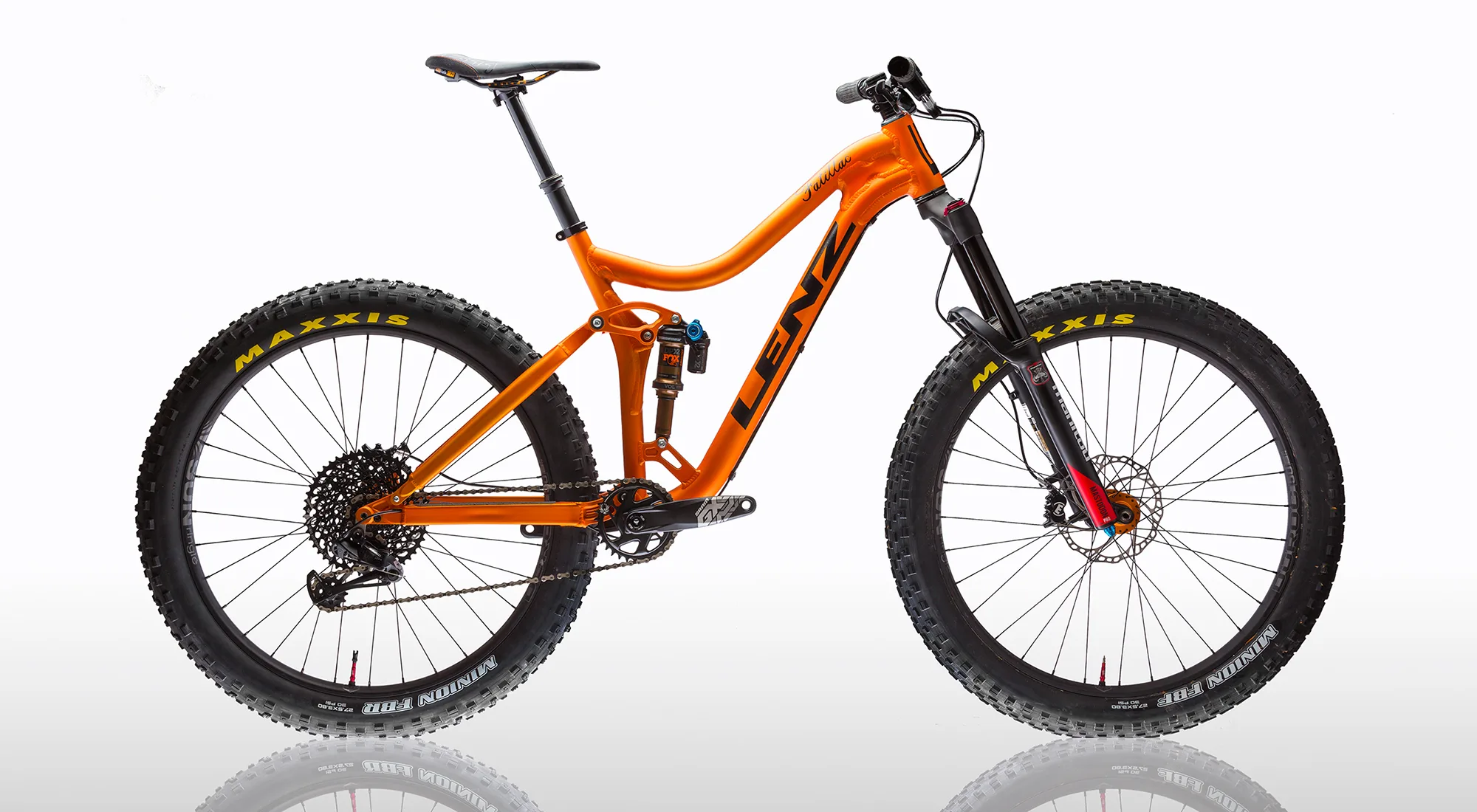

lenz fatillac full suspension fat bike

Fatillac Frame

lenz fatillac full suspension fat bike

Description

One Bike to Rule Them All – A true Full Suspension Fat Bike

You asked for it, so you got it. The Fatillac full suspension fat bike is now a reality. This Lenz bike is here to redefine the fat bike genre. The Fatillac might just be the most versatile mountain bike to ever grace the world of hard core trail riding. It’s designed with the same geometry as the Lunchbox 29er, and with clearance for 27.5×4.0″ tires or 26×4.0 tires, and you can swap in your 29×2.8″ or 27.5 x 3.0″ shoes for the summer if you don’t want the fatties. If you ride a lot of super chunky technical trails, you will love this bike with 27.5×3.8 or 4.0 tires. It eats up the chunk and climbs tech in a way no other bike can match. So with two sets of wheels, and one bike, you have a bike that can be a 29er trail bike in the summer and a full-on fat bike in the winter. With amazing plushness and agility on dirt and rocky trails and the added capability of riding in the snow, there is no limit to what you can do on this bike. Don’t let a little snow deter you from getting out and riding your favorite technical trail. Now you can ride those steep trails even when they are snow packed. This bike climbs well in snow and you can still hit the drops that you normally would on a dry day.

First three on the Fatillac. from LaceMine29.com on Vimeo.

Skippy on the Fatillac. from LaceMine29.com on Vimeo.

Fatillac Frame

$2,850.00

Order and Building Process

All Lenz Sport frames are handmade-to-order. We fabricate every single part of the frame in house down to the bolts, dropouts, pivots, and cable guides. Quality of craftsmanship and riding performance is the number one focus at Lenz Sport, not super fast delivery times.  Any lead times provided are estimates and are not guaranteed. One thing we can promise is that it will be worth waiting for!
A 50% non-refundable deposit is required to order either a frame or a complete bike.
Base price shown is for the frame and rear axle only. Please select rear shock and finish options and size below. You may order your frame and pay for it in full by choosing “add to cart”, or contact us to pay only the required 50% deposit.



Frame Price

Categories: , ,

Reviews

There are no reviews yet.

Be the first to review “Fatillac Frame”

Frameset:

  • Rear axle included
  • Rear shock not included

Fill out this form to request a quote for a complete bike.

We offer customized build kits for all Lenz Sport mountain bikes. We can build bikes with Sram, Shimano, or TRP drivetrain. We also offer Magura, Shimano, Sram, Hayes, TRP, and Hope Brakes. We typically build the wheels from scratch using Hope, Onyx, or DT swiss hubs and we can get other hubs if desired. Rims are dependent on desired tire size and we offer Sun Ringle, Stans, DT swiss, Derby Carbon and more. For cockpit components, we love Oneup and Fox dropper seatposts, Protaper and SQlab handlebars, and SQlab grips and saddles. For suspension we love DVO, Fox, and Rockshox and have other available options as well. We understand that each rider has their own component preferences so please let us know yours and we will fill in the gaps with our own recommendations.

**NOTE: Complete bikes range from $5500 to $10,000 depending on component choices


  • 4 inch fat bike tires on 26″ or 27.5″ rims
  • 3.0″ trail tires on 29er wheels
  • 27.5 plus compatible
  • 16.7 inch chainstay
  • 100mm threaded bottom bracket shell
  • Lightweight frame
  • 120 to 150mm fork travel options
  • 12x177mm rear through axle. Axle not included in frame price. Axle spec list
  • 1× specific
  • 30.9mm seatpost diameter
  • Routing for stealth dropper posts
  • Chainring compatibility: 0mm offset chainring required up to 30t.



Please note! All Lenz Sport frames are hand-made in Colorado. They are not factory built on an assembly line. Designs evolve iteratively, per Devin’s expertise and judgement. Specifications may vary, and are subject to change without notice.

 29plus geometry 140mm rear travel and 150mm fork
 650b/27.5 Fat geometry 140mm rear travel and 150mm fork
27.5×4.0″ tire (bottom bracket lowers approx 10mm with a 26×4.0″ tire)
  S M L XL XXL S M L XL
STACK 24.644/626mm 24.387/620mm 24.815/630mm 25.315/643mm 25.778/655mm 24.644/626mm 24.387/620mm 24.815/630mm 25.315/643mm
REACH 16.066/408mm 16.303/415mm 16.753/426mm 17.245/438mm 17.863/454mm 16.066/408mm 16.303/415mm 16.753/426mm 17.245/438mm
TT 22.75″/578mm 23.375″/594mm 24″/610mm 24.625″/626mm 25.25″/642mm  22.75″/578mm  23.375″/594mm  24″/610mm 24.625″/626mm
BB ht 13.5″/343mm 13.75″/350mm 13.75″/350mm 13.75″/350mm 13.75″/350mm 13.5″/343mm 13.75″/350mm 13.75″/350mm 13.75″/350mm
HT 4″/100mm 4.5″/115mm 4.5″/115mm 5″/127mm 5.5″/140mm 4″/100mm 4.5″/115mm 5″/127mm 5.5″/140mm
CS 16.75″/425mm 16.75″/425mm 16.75″/425mm 16.75″/425mm 16.75″/425mm 16.75″/425mm 16.75″/425mm 16.75″/425mm 16.75″/425mm
SA 75.5 75.5 75.5 75.5 75.5 75.5 75.5 75.5 75.5
HA 66 66 66 66 66 66 66 66 66
WB 44.5″/1130mm 44.8″/1140mm 45.5″/1155mm 46.5″/1180mm 46.9″/1190mm 44.5″/1130mm 44.8″/1140mm 45.5″/1155mm 46.5″/1180mm
SO 29 29.5 30 31.5 33 28 28.5 29 30.5
