Rear Axle specifications for Lenz Sport through axle frames

Frame Dropout spacing Axle description Overall Length Thread Pitch Sram Part#
12x142mm Maxle Ultimate 12x142mm 174mm 1.75 00.4318.005.009
12x148mm BOOST Maxle Ultimate Boost 12x148mm 180mm 1.75 00.4318.005.010
12x150mm Maxle Ultimate 12x150mm 182mm 1.75 00.4318.005.011
12x157mm *Maxle Ultimate for 12×148* 188mm 1.75 00.4318.005.012
12x177mm **Maxle Lite 12x157mm for Trek ADP 205mm 1.75 11.4315.023.020
*The Maxle available from SRAM labeled for 12x157mm is too long for Lenz 157mm frames. Use the part number listed on this sheet even though it’s not labeled for 12x157mm. The overall length is the important information, not what’s on the label of the axle.

**The Axle available from SRAM labeled for 12x177mm is too long for Lenz 177mm frames. Use the part number listed on this sheet even though it’s not labeled for 12x177mm. The overall length is 205mm, and is perfect for our 177mm frames.

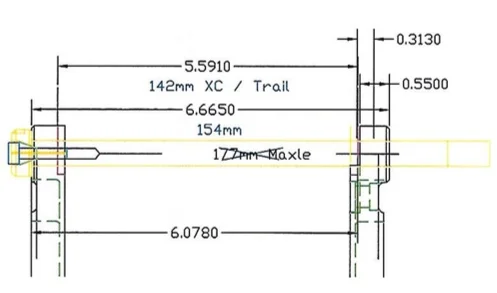

12x142mm frame spec

Rear Axle spec 12x142mm

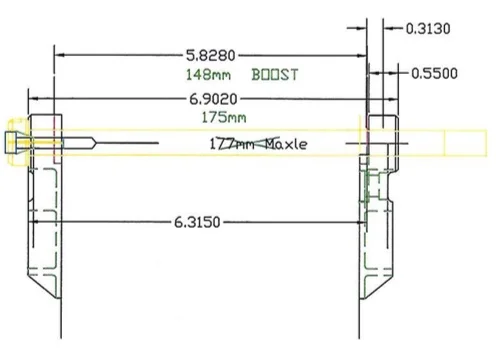

12x148mm frame spec

Rear Axle spec 12x148mm BOOST

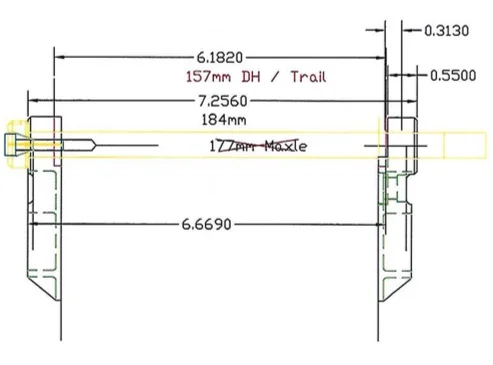

12x157mm frame spec

Rear Axle spec 12x157mm

12x177mm frame spec

Rear Axle spec 12x177mm FAT
